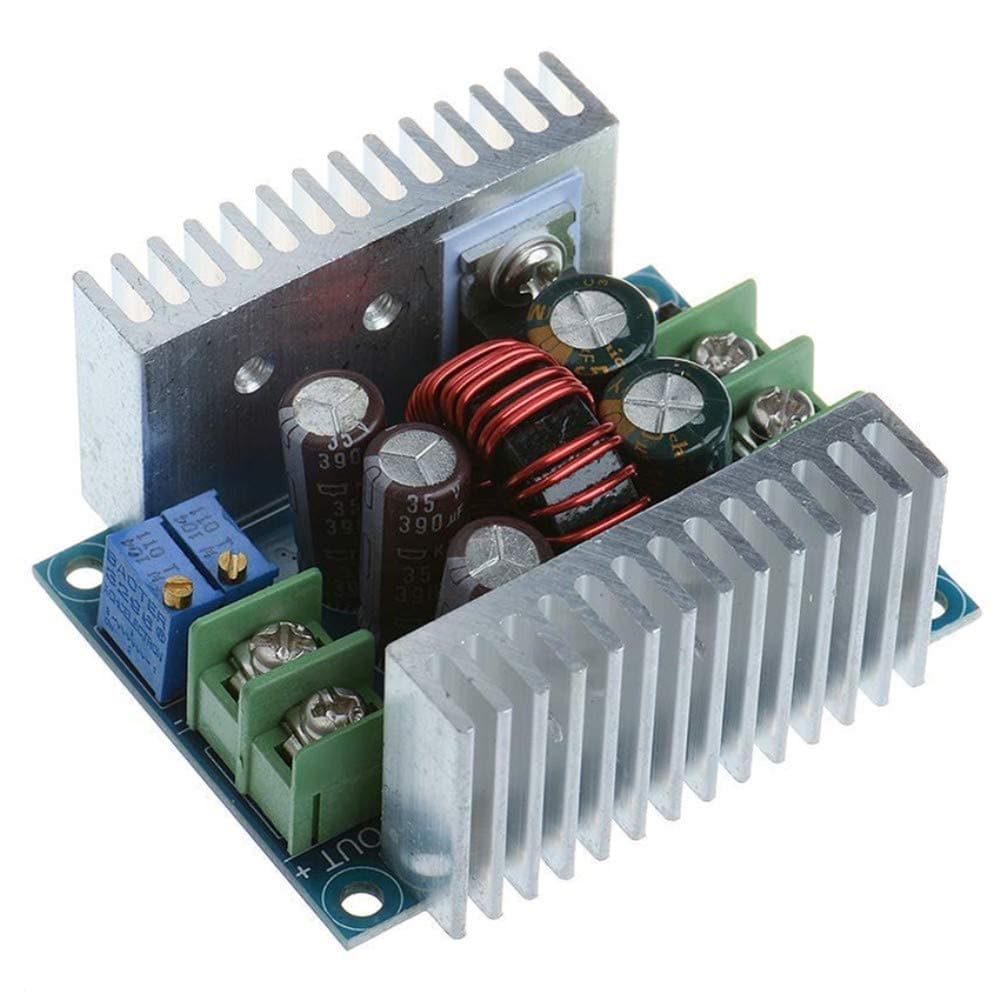

Name: Anmbest CC CV Constant Current Buck Converter Module DC 6-40V to DC 1.2-36V Adjustable Step Down Voltage Regulator 20A 300W Power Supply Module
Brand: Anmbest
SKU: 93907633
Price: 28.74 MAD
Availability: OutOfStock
Rating: 3 (2 reviews)

Description

Anmbest buck converter input voltage range is DC 6-40V, adjustable output voltage range is DC 1.2-36V, can be used to convert 24v to 12v 5v, adjustable output current range is 0-20A, max output power is 300W. The step down regulator can apply to constant output current.
With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current. The efficiency can be up to 95%,(measured at 20A, converting 24V to 12V).
It is designed with 75V/80A large current dual MOS tube. Input and output use high frequency low resistance electrolytic capacitor, low ripple, and gives a stable output. Wiring is convenient with these large current 30A screw terminals.
The buck module has 2 heat sink that could enhance heat dissipation. When there is a big difference between input and output voltage, please decrease power and current.
Application: Motors, audio, monitor, LED car display, air conditioner, fans, solar energy, photovoltaic energy, DVD, LED lights, pumps, industrial equipment appliances, etc.

Technical Specifications: Input Voltage: 6V to 40V DC (10V to 40V is suggested) Output Voltage: 1.2V to 36V DC Output Current: 20A (max.), 15A (suggested) Efficiency: 95% (24V to 12V, 20A) Output Ripple: less than 50mV Wiring Method: Terminal Short Circuit Protection: Self-recovery (cannot short circuit for long time) Size:60×53×27mm / 2.36×2.08×1.06 inch(L * W * H) Pins Description: VO+: Output positive VO-: Output negative +IN: Input positive -IN: Input negative CV: Output voltage adjustment CC: Output current adjustment EN: Enable, low voltage level shut off output; suspension, high voltage level is effective When input and output is common grounded, no-load CV output constant voltage,CC output constant current Package includes:  1 X DC DC Buck Converter 300W 20A

Reviews

B**4

Sold as new and I get used!

Really, a used item sold as new. Burnt Solder on screw holding heat sink! I’ve returned these same regulators so many times due to them not holding up to less than 9 amps. Now I pay extra shipping to replace a defective regulator and I get this in the mail today! First thing I did was test it. Yes, it worked, but would you put your confidence in this product? Especially after having so many fail in the past from other companies?

14.02.2019

A**R

Works as described

Used this product for small hobby projects. I've been happy so far with this product.

18.12.2018
