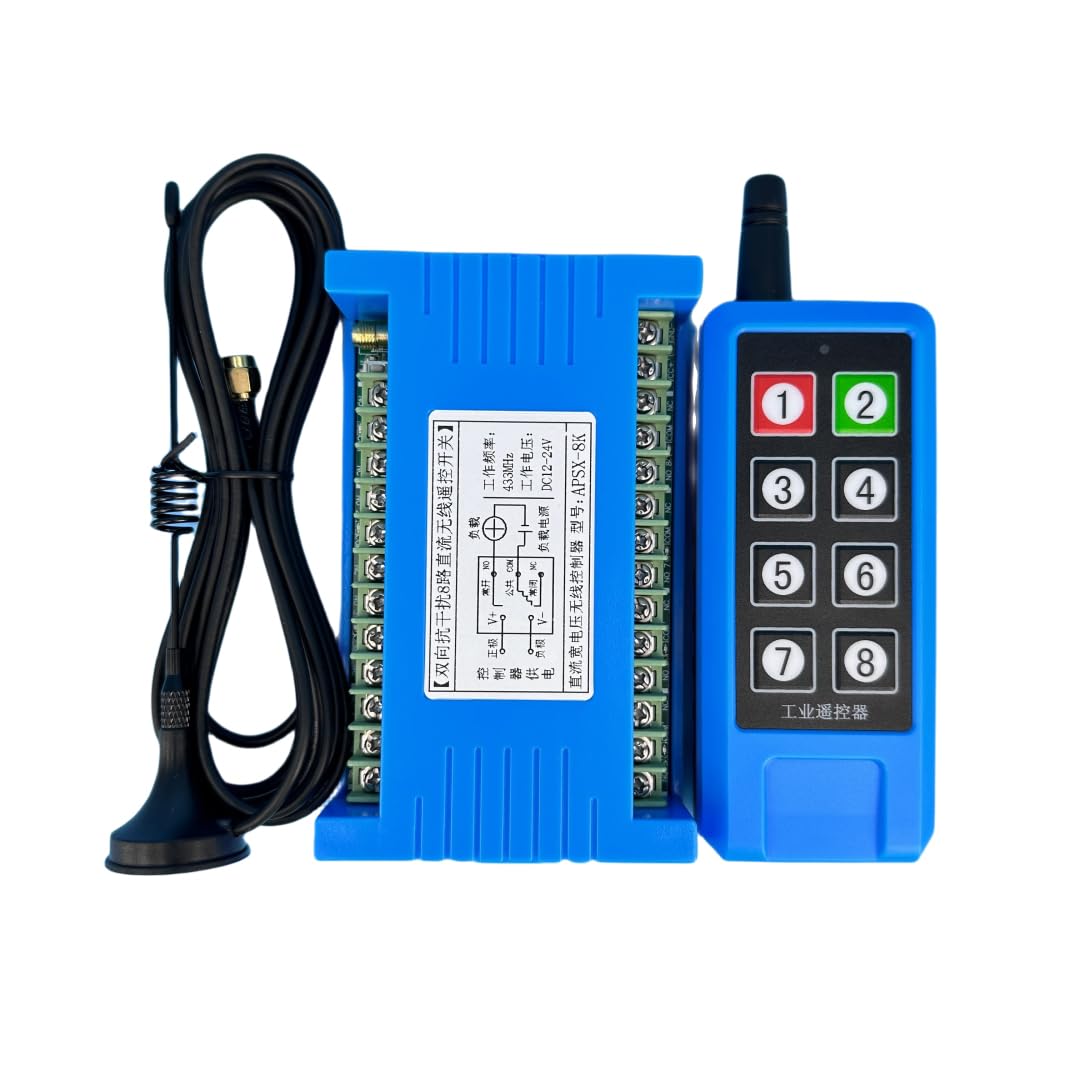

Package Include:
1 x Receiver

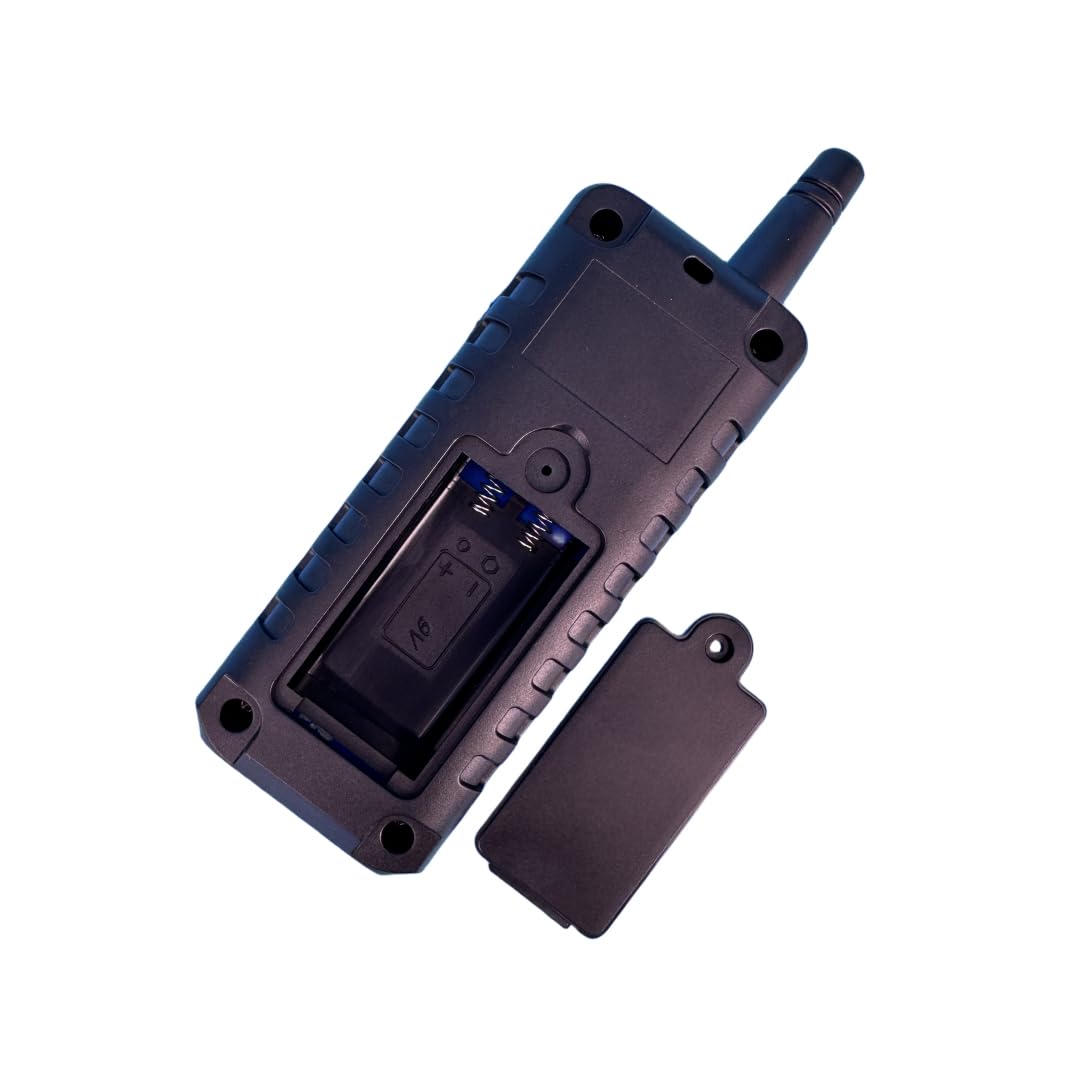

1 x Transmitter(with 9V battery/If you need an additional remote control, please let us know)
1 x User manual
1 x 3M Antenna
1 x 18 month warranty

Receiver parameters
Working voltage: DC12~48V
Standby Current: 16mA for DC12V Power Supply, 10mA for DC24 Power Supply
Working temperature: -30 ℃~+80 ℃
Sensitivity: ≥ -112dBm
Operating frequency: 433MHz
Load current: ≤ 5A

Control mode Description
Toggle / Self-locking mode: Press -> On; Press again -> Off.
Momentary mode: Press and hold -> On; Release -> Off.
Latch / Interlocking mode: Press -> On; Press another button -> Off.

Setting different control modes:(Realize different functions by remote button , Must enter learning mode)

We have set the receiver as Momentary control mode before delivery,. If you want to use other control modes, do as following operation Or tell us the mode you need after placing the order:
A. 1-8CH Toggle------ Press the transmitter button"1" to learn etc.
B. 1-8CH Momentary ----- Press the transmitter button "2" to learn.
C. 1-8CH Latch--- Press the transmitter button "3" to learn.
D. Only 1CH Toggle, 2-8CH Momentary---- Press transmitter button "4" to learn
E. 1-2CH Toggle, 3-8CH Momentary---- Press transmitter button "5" to learn
F. 1-4CH Toggle, 5-8CH Momentary---- Press transmitter button "6" to learn
G. 1-2CH Latch, 3-8CH Momentary---- Press transmitter button "7" to learn
H. 1-4CH Latch, 5-8CH Momentary---- Press transmitter button "8" to learn

Learn Code/learning mod

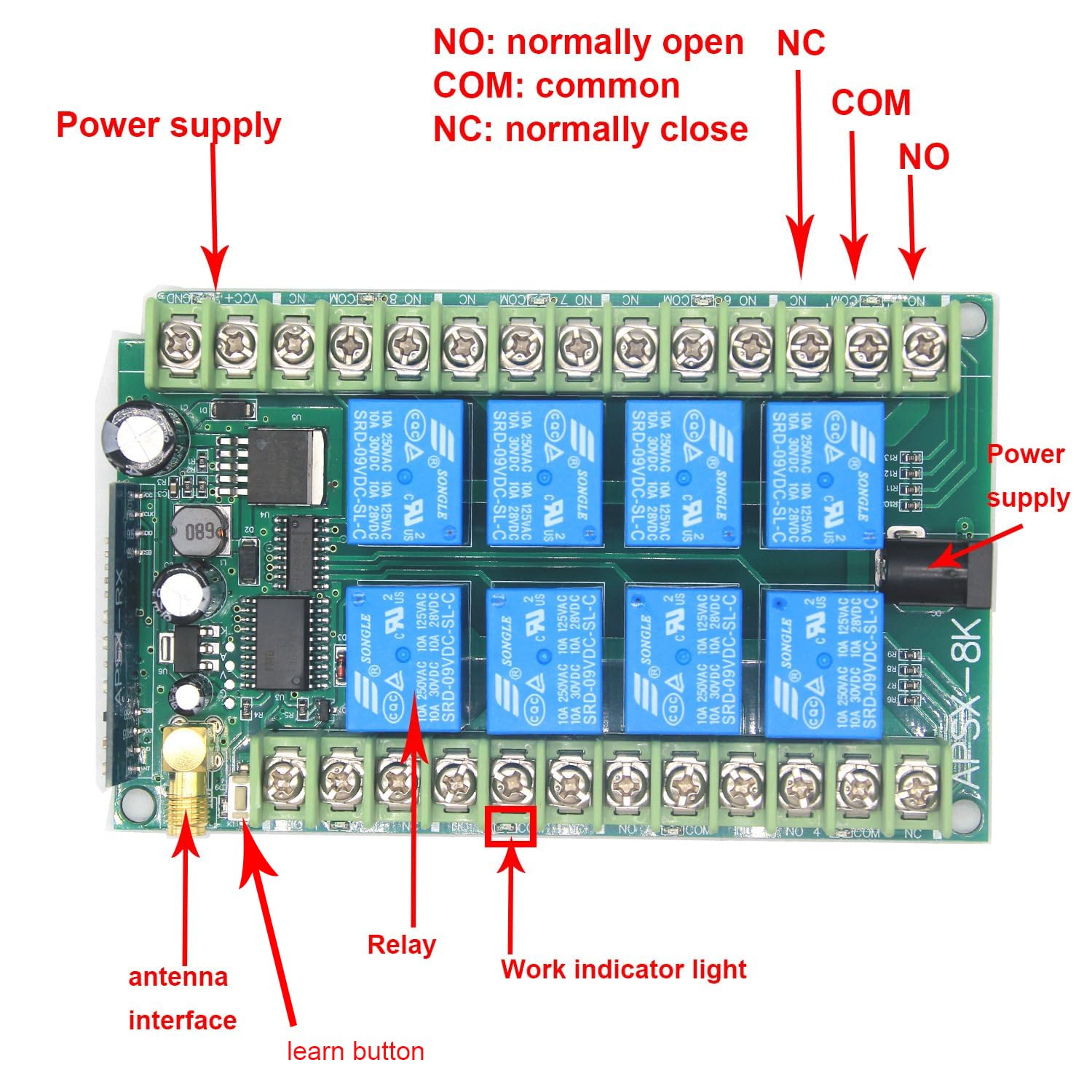

Press the learn button 3 seconds until the LED light lights up once. The recipient now remains in the state of learning.and then you can press the appropriate button to learn according to your requirement.

Delete Code: Press and hold the learn button for about ten seconds until the light turns off.

If you need to change the working mode, you need to delete the previous working mode first.

Working Range:the maximum working distance can reach 200M in an open ground. The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.

Manufacturer	Jiangbao
Part Number	Jiangbao8CHFK
Item Weight	8 ounces
Package Dimensions	3 x 3 x 3 inches
Item model number	Jiangbao2431602
Batteries	1 9V batteries required. (included)
Material	Stainless Steel
Power Source	Battery Powered
Voltage	12 Volts (DC)
Included Components	switch
Batteries Included?	Yes
Batteries Required?	Yes
Battery Cell Type	Alkaline

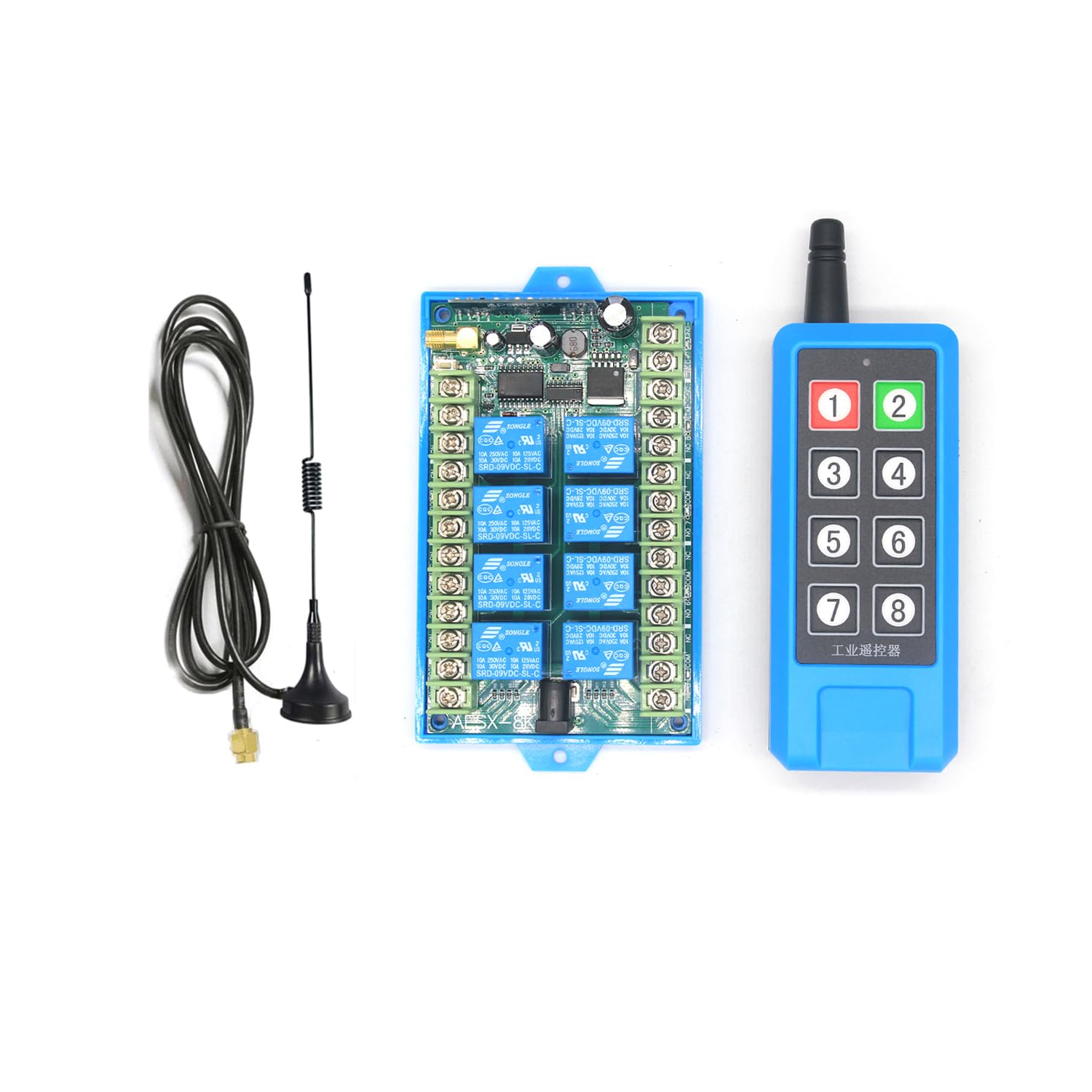

8 Channel DC12V 24V 48V long range Wireless remote Control switch Controller Feedback Function bidirectional Crane Linear Drives Light Motor/Button Working simultaneously/Industrial switch
