Question 1

Did you get a csb branded battery? the description says "by csb" but when i ordered, i got an email from lake battery saying they sell "sigmastek"

Accepted Answer

We sell the CSB battery as pictured. Tri-State Battery unlike our competitors will never substitute. We sell the item exactly as pictured. We hope this answers your question. Feel free to contact us if you have further questions. Tri-State Battery Customer Service, 812.537.2500

Question 2

Looks like the battery I need but there are differences in the numbers on the battery. The one I have says GP 1272 F2 12V 28W. Is this one right?

Accepted Answer

There are two different products from CSB that are both called "GP1272."  One battery "battery A" has the capacity listed below the model as "12V 7.2Ah" while the other "battery B" has it listed as "12V 28W."  Battery A has a 7.2 amp-hour rating which translates to 7.2 amps total delivered over a 20 hour period (7.2A/20hr = 360mA/hr) meaning this battery can supply a constant current of 360mA for 20 hours straight).   battery B with 28 watt rating is per cell (6 cells in a 12V battery) for 15 minutes (power/V=A, so 28w/12V  = 2.33A/cell * 6 cells = 14A for 15 min, meaning this battery can supply a total of 14A for 15 minutes straight).  The units aren't truly relate-able as the discharge curves are not linear.  You need to de-rate the capacity based on rated run time.You really need to look at the discharge curve on the manufacturer spec sheet - A 7Ah battery over 15 minutes is more like a 3.5 or 4Ah battery.  The spec sheet for the Power-Sonic PS-1270 identifies the Ah rating at 20hr, 10hr, 5hr, 1hr and 15 minutes.   A good way to gauge or compare how much power a battery can store is by its weight (more lead>more power>heavier product).  Of course, the manufacturer doesn't have a spec sheet for battery B, so we can't really tell how much it weighs.  According to the spec sheet for battery A, the GP1272 is an 8Ah battery.  When I reached out to CSB, they told me the 28w battery is equivalent to a 7Ah.  I would guess CSB has offered a lower quality option to UPS manufacturers to cut their cost.

Question 3

What is the diamension

Accepted Answer

Approximate Dimensions: H 3.88" x L 5.94" x W 2.56"

Question 4

Will this battery fit in a apc xs1000 upc?

Accepted Answer

Probably. It’s made for UPS units

ASIN	B00HKJ1FW6
Battery Capacity	7.2 amp_hours
Battery Type	Sealed Lead Acid
Best Sellers Rank	#343,023 in Automotive ( See Top 100 in Automotive ) #730 in Automotive Replacement Batteries
Brand Name	CSB Battery
Compatible with Vehicle Type	Scooter
Customer Reviews	4.5 4.5 out of 5 stars (500)
Manufacturer	CSB Battery
Manufacturer Part Number	GP1272F2
Model Number	GP1272F2
Number Of Cells	6
Number of Items	1
Size	Piccola
Terminal	F2 Terminal
UPC	880487234002
Unit Count	1 Count
Voltage	12 volts

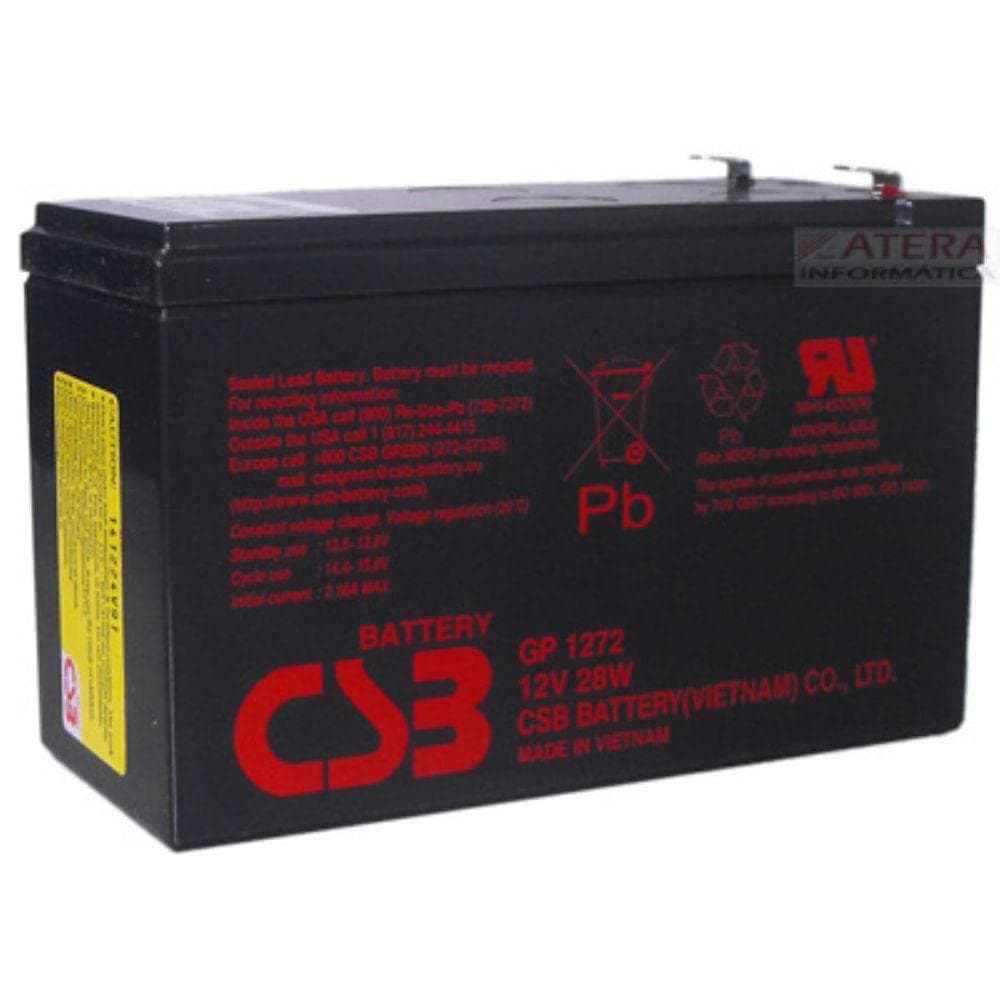

CSB GP1272F2, 12 Volt/7.2 Amp Hour Sealed Lead Acid Battery
