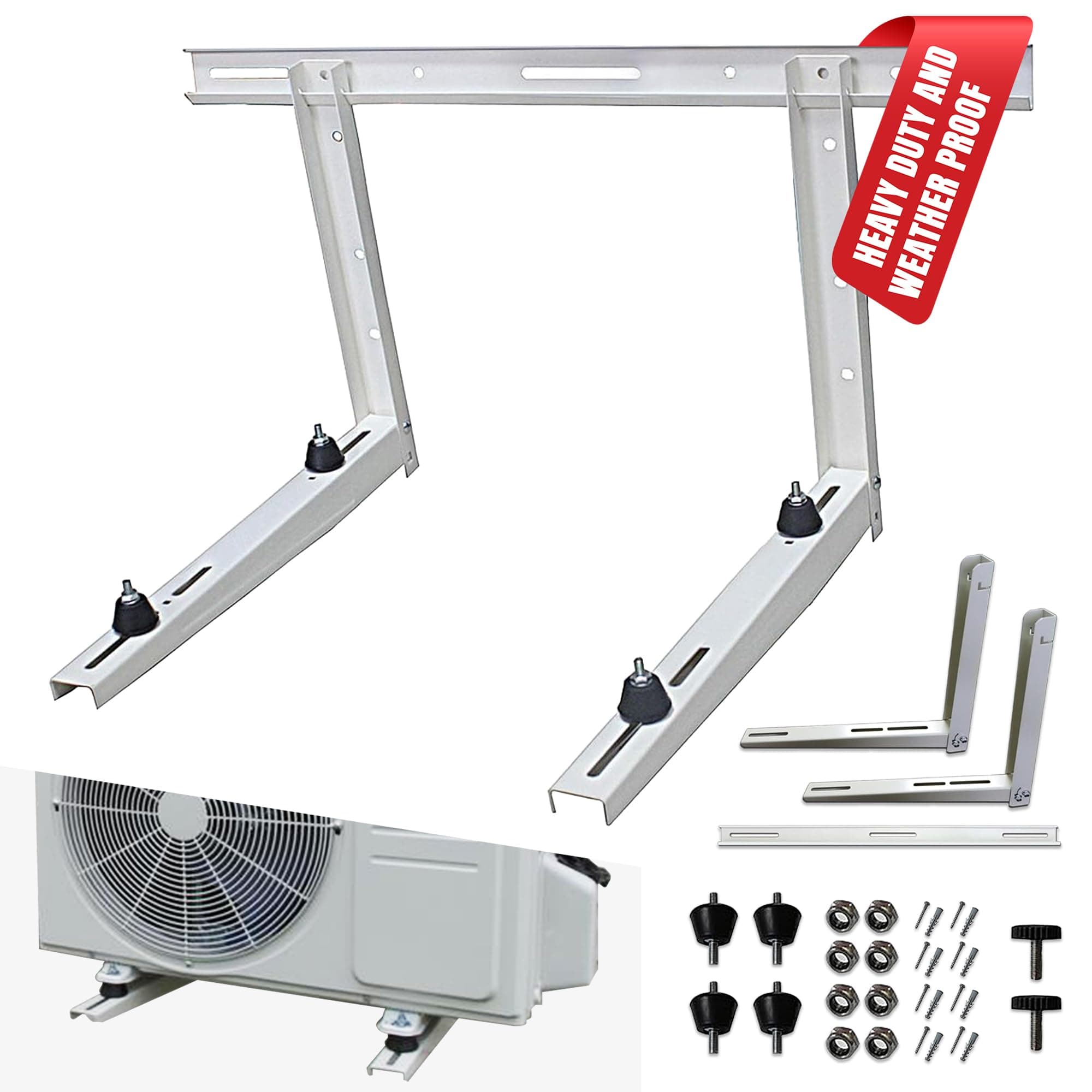

DuctlessAire Outdoor Wall Bracket - Mini Split Mounting Bracket - Ductless Air Conditioner Wall Mount - Mini Split AC/Heating System Accessories for Window AC, HVAC, Heat Pump & More (9000-36000 BTU)

Instructions say the top horizontal arm holds no weight and weight must be placed on the fasteners of the 2 vertical arms. So Its nice to hit 2 studs. Unfortunately I did not, and hit 1 stud..Then Drilled a 1/2 inch hole into the stud. Trying to install a toggle bolt...Luckily, after careful deliberation I filled the 1/2 inch hole with exterior wood glue and a piece of half inch dowel, and was able to capture, at least, 1 vertical arm with the included lag bolt fasteners on a stud. The other arm got the toggle bolts. Unfortunately I could not locate a stud for 1 vertical arm. After doing some heavy engineering maths on 3 or 4 different types of fasteners I used, I came up with the number of how much weight this could hold, based on the fasteners, and it was well over 4x the 60 lbs. I weighed my condenser at. Using the engineering maths weights I felt comfortable doing a few dips off of the mounting bracket to check my work. I do believe the top horizontal arm does add some structural support and the manual is saying dont depend on it, just forget the top arm exists when making your engineering weight calculations with fasteners and what youre mounting into. Now that the mount is mounted with fasteners. The quality of the mount is there. Its fully capable of securing the 55 lbs of load. The rubber feet dampeners do help with noise reduction and I consider what is included robust for the quality of the dampener. Most importantly is the arms length. Its a little longer and gets my unit farther away from a flush mount with the wall. This is important to increase the efficiency of the unit as it tries to draw in air from behind it. You want these long arms to give more room behind the unit.

These brackets worked out perfectly for our mini split installation. The unit was professionally installed, and even the installers commented on the solid quality of the brackets and how well they were built to hold the weight. The picture shows our larger 24,000 BTU C&H unit, and the brackets are supporting it with no problem at all. They’ve proven sturdy and reliable, giving us confidence in the setup, and I will update this review if anything changes!

The instructions are very clear it all went together easily. I used the provided wall fasteners, but they will need to be painted- they will rust.

Purchased this stand a couple times from various outlets, and they seem to be of decent quality and are holding up well to the elements. Keeps the condenser in place and the rubber isolators are nice! I did use the provided concrete lag screws that it came with on one install and they seem to be okay. I would recomend providing a better quality masionary anchor system than the one it comes with.

This is the actual wall mount I used for my mini-split outdoor unit. Overall, it’s solid and does the job, but it loses a star because it does not have standard 16" on-center mounting points, which is a real consideration for wood-frame construction. To install it properly and ensure it could handle the shear load, I had to add horizontal 2×6 blocking tied into the studs. Once mounted that way, the bracket felt secure and stable with no flex. The bracket itself is well-built and works fine for the supported BTU range, but installers should be aware that extra framing may be required if you’re mounting on a typical stud wall. If you plan for that ahead of time, it’s a good product—but it’s not a simple bolt-to-stud solution out of the box.

Simple to install, works well with a 18K unit, has all the hardware needed. Not much else to say

Perfect match for the Della mini spilt. Quality and easy to mount.

It's not a terrible hanger but here's what I dealt with while using it to hang a 24000btu compressor for a mini split system. 1. The hardware (wood bolts, rubber feet for vibration) are junk. I easily twisted the head of the screw off one of them which makes me worried about the rest of them. I didn't use much torque on them. So I will be going to my local hardware store to sink in some good ones besides the ones that came with the hanger. 2. One of the rubber feet easily allowed the bolt to pull through the rubber foot and now one of the 4 isn't attached and it hanging freely. Luckily for me my heat pump unit came with vibration spacers and I was able to use those. Which feels of much better quality. 3. The hanger only allows my unit to be 8 ½ inches from the wall if my home. I was hoping for a minimum of 10-12 inches of clearance behind the unit. So I'll have to see once it is functional whether the 8 inches will be enough or if I'll just pour a concrete pad and put the unit on the ground. All in all it's not terrible. The setup was straight forward. The design is decent. The included hardware can't be trusted and I'd double check to make sure your unit will have enough clearance behind it once you mount it. My 24000 Della compressor is wide so perhaps a smaller unit will give you more clearance in the back. Idk. Hope this helps.

Most the stuff dose not fit well together , expensive for no point,be aware

parfait

Je ne les pas installé encore ses to us pour les air climatisé grosse

Great!

Parfait pour le thermopompe qu'on a posé
