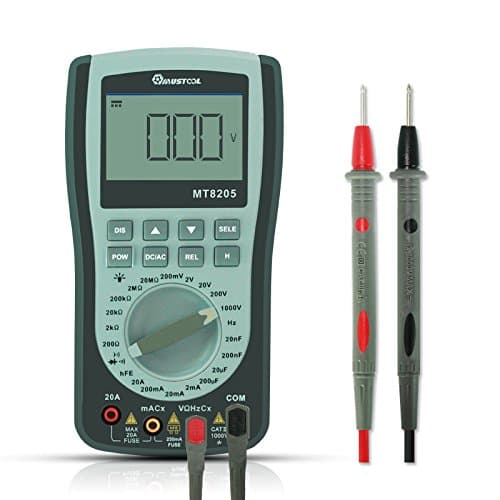

The new improved MSTOOL MT8205 contains several recent updates and fixes from its predecessor. Features: 1, 200ksps speed A/D sampling with double integral A/D combination, depending on the wave function of a key conversion. 2, The automatic waveform capture function, easy operation. 3, The software calibration technology, memory calibration coefficients. 4, Features include DC/AC voltag /current, resistance, capacitance, frequency, diode / continuity test. 5, Display hold, storage / readout up to 10 waveforms and 100 sets of measurement values. 6,128X64 high contrast LCD with LED backlighting. 7, Can choose to automatically shutdown or continuous operation. 8, 20A AC and DC test, built-in 500V/20A explosion proof fuse. Specification: Display: 128 x 64 dot-matrix graphic LCD Viewing area: 60mm x40mm Backlight: White Input Resistance: 10MΩ Battery: 4 x 1.5V AAA battery (Not included) Automatic shutdown. Power shortage prompts. Power consumption: less than 20mA. Storage capacity: DMM 100 groups of data, waveform 5 group records. Environment: 0 ° C ~ + 40C; <75% RH Storage conditions: -10C ~ + 60C; <90% RH Dimensions: 186mm x 100 mm x 45mm Weight: 370g (without other accessories) Analog Bandwidth: DC AC ~ 10kHz The maximum real-time sampling rate: 200ksps DC voltage: 200.0mV ~ 1000V ± (0.75% rdg + 10dgt) AC voltage: 200.0mV ~ 750V ± (1.0% rdg + 10dgt) DC Current: 2mA ~ 20.00A ± (1.2% rdg + 10dgt) AC current: 2mA ~ 20.00A ± (1.5% rdg + 10dgt) Resistance: 200.0Ω ~ 20.00MΩ ± (1.0% rdg + 5dgt) Capacitance: 20.00nF ~ 200.0μF ± (2% rdg + 10dgt) Frequency: 2KHz ~ 200KHz ± (1.0% rdg + 5dgt), Diode test: open circuit voltage of about 1.5 V, the maximum test current of about 1.5mA. Continuity Test: determine resistance: about 100Ω Remote control Detection: 38kHz carrier frequency Transistor Magnification: 30 ~ 1000 (annex) Fuse rating: Φ5 × 20A, 250mA / 250V Package included: 1 x MSTOOL MT8205 Handheld Storage Oscilloscope Multimeter 2 x Test Lead 1 x English User Manual
