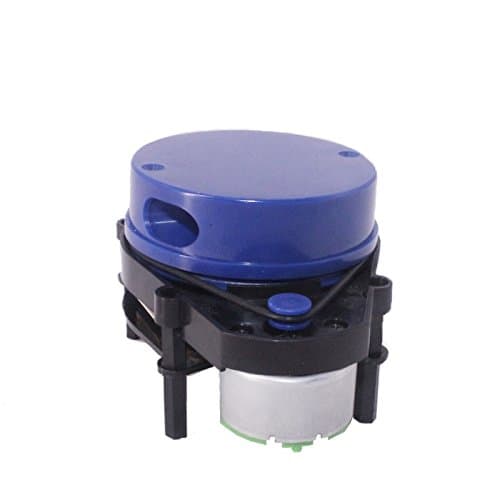

swiftflying YDLIDAR X4 LIDAR Laser Radar Scanner Ranging Sensor Module 10m 5k Ranging Frequency

الوصف

Performance characteristics Application field: Indoor Light source: Infrared（785nm） angle：360° accuracy：Full range＜1% noise：＜35db Range finder frequency：5000 times/S Scanning frequency：7Hz(Adjustable） Angular resolution：0.63° Measuring distance：0.12m - 10m Laser grade：class 1 Interface UART：LVTTL Level standard Support scan frequency adjustable：yes Support low power：ye Mechanical / electronic parameters Electrical connection： 8 pin PH2.5 Connector working voltage：5V@500MA Power waste：1.5W （Start peak2.5W） Shell color：black and blue weight:189g size:102mm*71mm*63mm Environmental parameters Working environment temperature：0~40° Storage temperature range：0~70 Development support Linux drive：yes Windows drive:ye
