What are the inside dimensions of the "U" opening?

A 2x4 piece of lumber fits just right.

What is the space from top hole to bottom hole. I want to mount the brackets on a horizontal fence 2x4. Will the brackets fit ok on a horizontal 2x4?

The top hole to bottom hole is 5”. You’d have to mount on a 2 x 4 vertically. 2 x 6 or wider would work horizontally.

Please verify the bolt and/or screw hole diameter .... thanks, e-jay

Hello, The diameter of the bolt body is 5mm, hope this help you.

What the internal width of the bracket? i need something that is 53mm?

The width of the metal bar used in the brackets is 1.5625 inches and the opening space (designed for a finished 2 x 4 piece of lumber) is 1.6875 inches at the bottom of opening and 1.75 inches at top of opening. I wasn’t sure which measurement you were asking about so gave you both measurements.

Unit count	2.0 count
Item depth	1.5 inches
Mounting type	Door Mount
Manufacturer	AINAFIX
Part Number	HOMESAFE01
Package Dimensions	16.2 x 6.3 x 4.4 cm; 740 g
Item model number	HOMESAFE01
Style	Black
Finish	Powder Coated
Item Package Quantity	1
Batteries included?	No
Batteries Required?	No
Item Weight	740 g

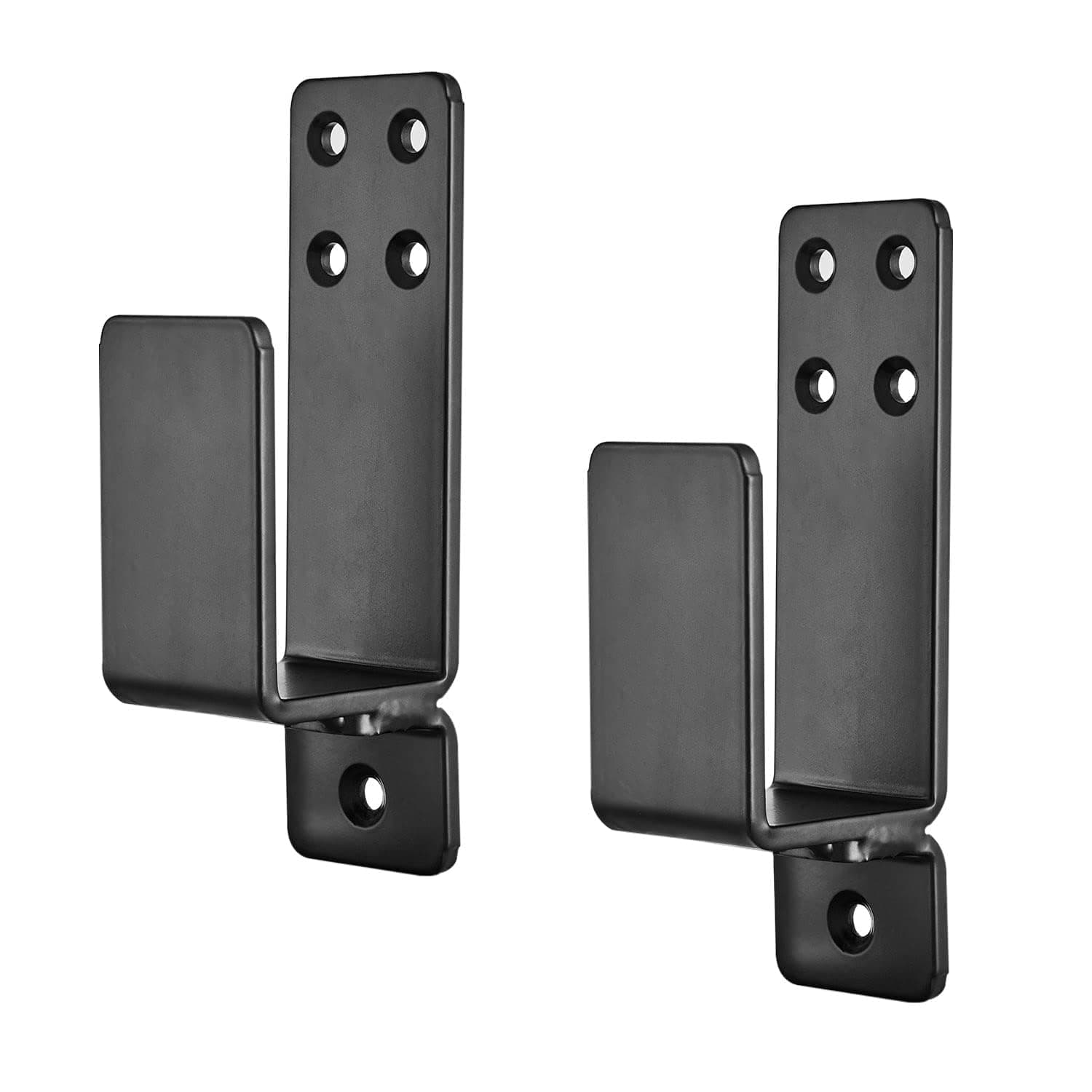

Door Barricade Brackets, 2 Pack Drop Open Bar Holder U Bracket for 2 by 4 Lumber, Heavy Duty Closed Bar Holder Steel U Bracket
