X3399 is incorporated with six cores: four A53 cores and two A72 cores.

Functions and Feature

Kernel: four ARM Cortex-A53 cores + two Cortex-A72 cores;

Dominant frequency: 1.4GHz*4 + 2G*2;

Memory: 2GB LPDDR3;

Flash: Supporting optional 4GB/8GB/16GB/32GB/64GB eMMC and standard 16GB eMMC;

One-channel USB HOST2.0 interface; One-channel USB HOST3.0 interface;One-channel TYPEC interface (compatible with OTG function); One-channel RS232 interface, one-channel TTL serial port; One-channel TF card interface;

Reset button;

Four-channel independent buttons;

Software on/off button;

External two-channel speaker;

MIC input;

Earphone output connector;

Audio fiber output interface;

Supporting backlight stepless regulation;

Supporting HDMI interface;

Supporting 5-point capacitive touch;

Onboard AP6354 WIFI/BT;

Supporting G-sensor;photosensitive sensor (dry soldering by default); MPEG-1, MPEG-2, MPEG-4, H.263, H.264, H.265, VC-1, VP9, VP8, and MVC video decoding;

Supporting H.264, MVC, and VP8 video encoding; 2D and 3D high performance graphics acceleration;

Supporting real-time saving of RTC clock; Gigabit wired Ethernet RTL8211E; BT656/BT601/MIPI camera interface; GPS interface;

Shipping list:

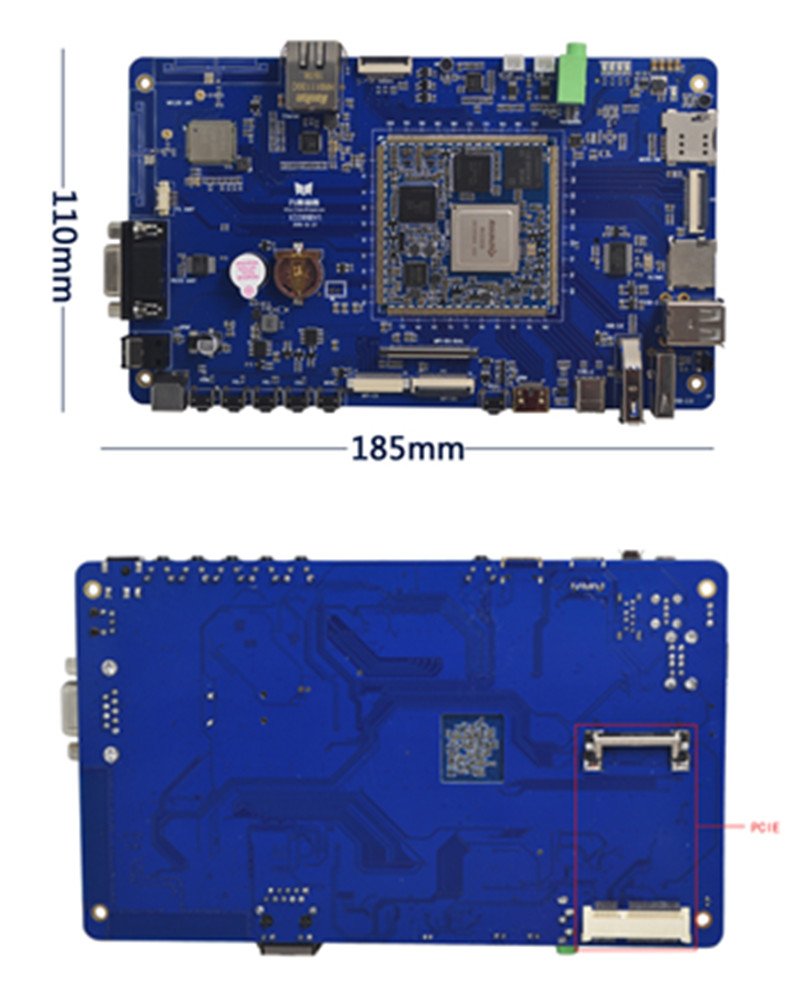

One set of x3399 development board (with a 7-inch 1024*600 capacitive touch LCD module)

One 5V/2A power adapter

One TYPEC data line

One serial line

X3399 RK3399 Six-Core 64-bit High Performance Platform Android 6.0 Android7.1 debian9 development board
