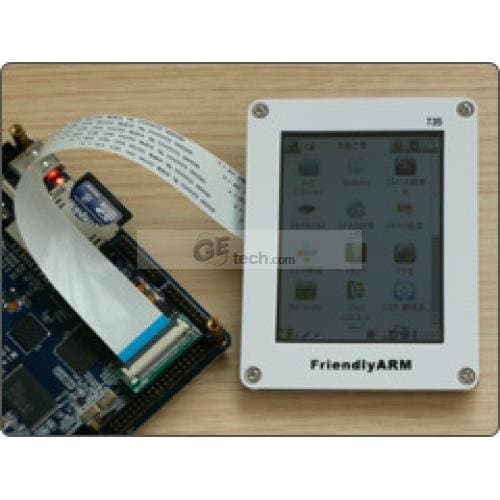

S3C6410 ARM11 Board 7" TFT LCD Mini6410 ARM11 SBCFriendlyARM Mini 6410 SBC (Single-Board Computer) with 533 MHz Samsung S3C6410 ARM11 processor. The board measures 11 cm x 11 cm, ideal for learning about ARM systems. Specification: Dimension: 110 x 110 mm CPU: 533 MHz Samsung S3C6410A ARM1176JZF-S (max freq. 667 MHz) RAM: 256 MB DDR RAM, 32 bit Bus ,Flash: 256 MB NAND Flash EEPROM: 1024 Byte (I2C) ,Ext. Memory: SD-Card socket Serial Ports: 1x DB9 connector (RS232), total: 4x serial port connectors IR: Infrared Receiver ,USB: 1x USB-A Host, 1x miniUSB Slave-OTG 2.0 Audio Output: 3.5 mm stereo jack ,Audio Input: Condenser microphone Ethernet: RJ-45 10/100M (DM9000) ,RTC: Real Time Clock with battery Beeper: PWM buzzer ,Camera: 20 pin Camera interface (2.0 mm) TV Output: CVBS ,LCD Interface ,STN Displays: Monochrome, 4 gray levels, 16 gray levels, 256 colors, 4096 colors Max: 1024x768 ,TFT Displays: Monochrome, 4 gray levels, 16 gray levels, 256 colors, 64k colors, true color Max: 1024x768 40 pin (2.0 mm) and 41 pin connector for FriendlyARM Displays (4.3" and 7") Touch Panel: 4 wire resistive,User Inputs: 8x push buttons and 1x A/D pot User Outputs: 4x LEDs Expansion: 40 pin System Bus, 30 pin GPIO, 20 pin SDIO (SD, SPI, I2C), 10 pin Buttons (2.0 mm) Debug: 10 pin JTAG (2.0 mm) ,Power: 5V connector, power switch and LED Power Supply: regulated 5V OS Support, Windows CE 6 ,Linux 2.6 ,Android ,Ubuntu SD download tool: SD-Flasher More Downloads: FriendlyARM Wiki Schematics: Mini6410 Schematics 3.5" Display Schematics 4.3" Display Schematics 7" Display Schematics CAM130 Schematics Manual Download:
