Question 1

Does this work with a Crucial M500 ssd without desolder? is it P&P?

Accepted Answer

Armando. Yes to both (I bought to use with an M500), however, this unit is designed to be plugged into a 2.5" external drive enclosure. I use one from StarTech. The M500 plugs into this board. You then insert the board into the external drive enclosure as you would with a SATA drive. Then plug into your computer using USB. It will be recognized as a drive and you can format, clone, whatever.

Question 2

Does it slow the transfer?

Accepted Answer

In theory it shouldn't as long as your SATA connection on the motherboard (or controller card) can handle the rates your drive supports.  If your mSATA drive is rated for reads or writes of 350+ MB/s, then you should plug it into a SATA 3 header.  If it's rated for anything below 300MB/s, then SATA 2 should be fine.  In most cases you may not notice a difference anyway.  The biggest benefit of solid state drives for most people isn't usually sequential transfer speed, but access times and random read/write speeds.  A lower SATA connection won't really affect either of those.In summary: If you do a lot of large file transfers, then you may notice a difference if you use a SATA port rated for slower transfer speeds than your drive is capable of, but for almost all other usage there should be little to no difference.Disclaimer: I've not performed a bench suite or torture test with this device, so I can't give hard data on performance degradation versus a native mSATA connector.  If I have time I'll bench it and post stats.

Question 3

I bought by mistake a Sata SSD disk and my laptop had mSata SSD disk. Can i use this adapter? My laptop is TOSHIBA PORTEGE ULTRABOOK Z835-SP3240L and

Accepted Answer

If it truely is a mSata SSD disk then yes it will work, any and most mSata cards work very well with this adapter depending on the size and shape they have. Now according to your specs I pulled up and looking at a similar laptop this will properly fit into the adapter. If you have any other questions feel free to ask and I will try and respond promptly as possible.

Question 4

so you put the MSATA on the board and it will convert it to sata right?

Accepted Answer

Yes. But only a MSATA SSD drive will fit it. I normal SSD will not fit

Wireless Type	Bluetooth
Brand	Micro SATA Cables
Item model number	MSATA-ADPT
Hardware Platform	PC, laptop
Item Weight	0.16 ounces
Product Dimensions	4.96 x 0.31 x 2.44 inches
Item Dimensions LxWxH	4.96 x 0.31 x 2.44 inches
Color	Green
Manufacturer	Micro SATA Cables
ASIN	B004YKJ5TE
Is Discontinued By Manufacturer	No
Date First Available	April 29, 2011

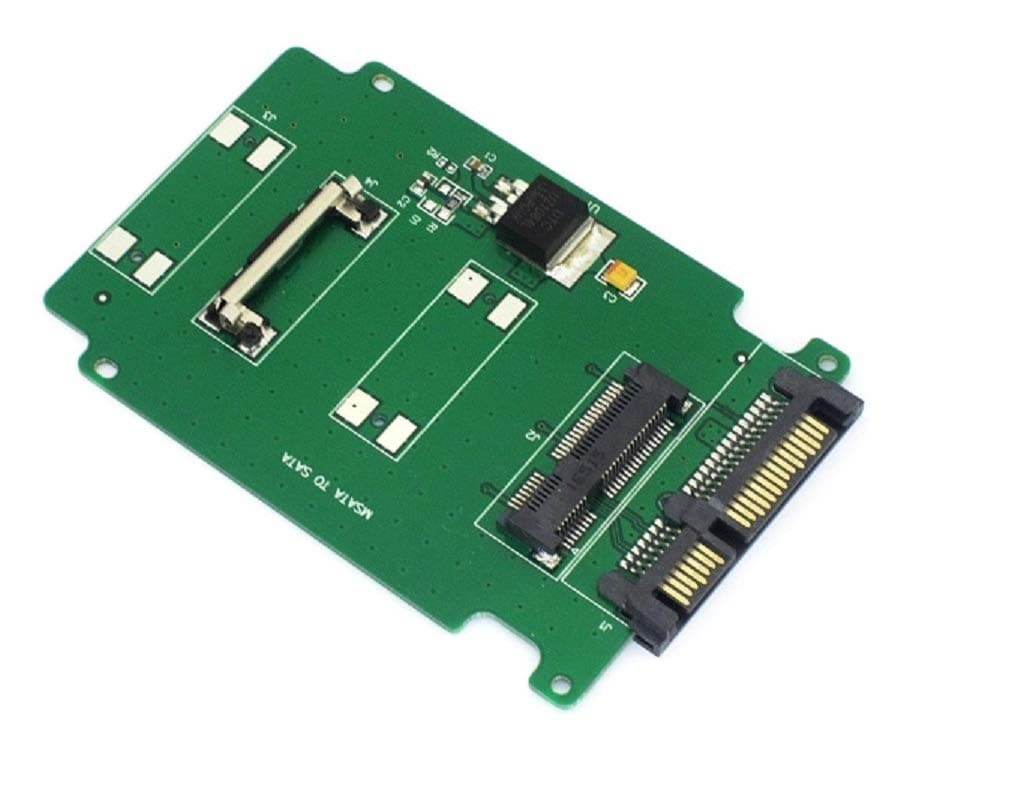

mSATA to SATA Adapter
